ALPHA WATER SYSTEMS INC
THE BEST WATERMAKER ON THE PLANET!
                    SEA WATER DESALINATION SYSTEMS
                        150 to 6,000 GALLONS PER DAY

STANDARD FEATURES

      T.F.C. Sea Water R.O. Membrane
      Corrosion Resistant
      316SS High-Pressure Tubing
      Safety Pressure Relief Valve
      5-Micron Sediment Prefilter
      Alloy Frame
115VAC 60HZ 10 Amps
      Fiberglass Pressure Vessels
      Automatic Feed Water Shut-off Valve
TDS Monitor

AWSW-150SW
         OPTIONAL FEATURES
  • Low Pressure Shut-off Switch
  • Flowmeters
  • 316 Stainless Steel Pump
  • 50Hz/220V Motor
  • Prefilter Pressure Gauges
  • Automatic Permeate Flush
  • High-Rejection Membranes
  • 12V or 24V D.C. Motor
SYSTEM SPECIFICATIONS:
Model Production* 3rd Year
Operating
Pressure
(psi)		 Inlet
Size		 No. of
Elements		 Element
Size
Diameter
x Length		 Designed
Recovery		 Motor Specifications
60Hz/230V 50Hz/220V/400V
GPD LPD Phase HP Phase HP
AWSW-150SW 150 380 905 3/8" 1 2.5" x 14" 6% 1 3/4 1 1/2
AWSW-200SW 200 570 776 3/4" 1 2.5" x 21" 5% 1 1.5 1 1.5
AWSW-350SW 350 1,325 790 3/4" 1 2.5" x 40" 10% 1 1.5 1 1.5
AWSW-600SW 600 2,270 774 3/4" 2 2.5" x 40" 18% 1 1.5 1 1.5
AWSW-1000SW 1,000 3,785 795 3/4" 3 2.5" x 40" 19% 1 2 1 2
AWSW-1500SW 1,500 5,675 885 3/4" 4 2.5" x 40" 25% 1 3 1 3
AWSW-3000SW 3,000 11,350 894 3/4" 3 4" x 40" 35% 3 5 3 5
AWSW-4500SW 4,500 17,035 856 1.5" 5 4" x 40" 30% 3 7.5 3 7.5
AWSW-6000SW 6,000 22,710 927 1.5" 7 4" x 40" 30% 3 10 3 10

WEIGHTS & DIMENSIONS: (Optional features may increase dimensions)

Model Approximate Shipping Dimensions Approximate System Dimensions
Width
(in/cm)		 Length
(in/cm)		 Height
(in/cm)		 Weight
(lbs/kg)		 Width
(in/cm)		 Length
(in/cm)		 Height
(in/cm)		 Weight
(lbs/kg)
AWSW-150SW 24/50 50/66 18/40 142/40 15/38 20/50 10/25 70/32
AWSW-200SW 40/100 30/75 26/66 175/80 35/89 24/60 18/46 150/70
AWSW-350SW 58/150 30/75 26/66 200/90 50/127 24/60 18/46 175/80
AWSW-600SW 58/150 30/75 26/66 230/105 50/127 24/60 18/46 200/90
AWSW-1000SW 58/150 30/75 26/66 260/120 50/127 24/60 18/46 230/105
AWSW-1500SW 58/150 30/75 26/66 290/130 50/127 24/60 18/46 260/120
AWSW-3000SW 70/180 52/132 60/150 750/340 61/155 40/100 48/122 580/264
AWSW-4500SW 70/180 52/132 60/150 750/340 61/155 40/100 48/122 660/300
AWSW-6000SW 70/180 52/132 60/150 950/430 61/155 40/100 48/122 860/390

AWSW-150SW
$17,395.00
AWSW-200SW
$19,995.00
AWSW-350SW
$22,998.00
AWSW-600SW
$24,029.00
AWSW-1000SW
$25,600.00
AWSW-1500SW
$26,925.00
AWSW-3000SW
$32,620.00
AWSW-4500SW
$42,599.00
AWSW-6000SW
$49,900.00
**Production based upon feedwater having 35,000 ppm/tds (parts per million/total dissolved solids) @ 77 degrees
Fahrenheit (25 degrees Celsius) and a pH of 7.

Plus Shipping-
Crated For Worldwide Delivery

973-293-7856

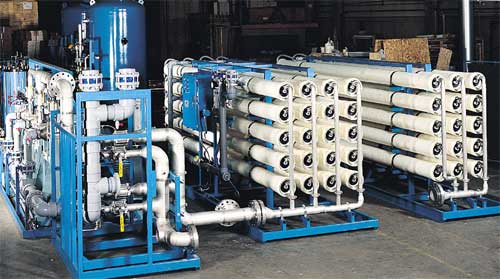

Industrial/Commercial Reverse Osmosis/Desalination Plants
Email or Call for a quote.

POTABLE WATER

                                            Resorts and hotels around the world, such as the Hyatt
                                            Regency, Grand Cayman Islands, rely on high-efficiency
                                            seawater reverse osmosis systems for potable and irrigation
water direct from the sea.

      We provide worldwide on-site technical installation support.
We use RO System Design Software for projections on
membrane and filter life.



For seawater applications, composite thin film polyamide
membrane elements enable salt rejection in excess of 99.5%

                                            STANDARD COMPONENTS FOR COMMERCIAL
                                             DESALINATION SYSTEMS
                                             Our Engineered Systems group draws from decades of
                                             experience with membrane systems to configure the model
                                             exactly right for your application. Proven system components
                                             include:
                                             Cartridge
                                             Filters and
                                             Housing
                                                                          5-micron depth filters
                                                                          in an Osmonics PVC, FRP, or alloy
                                                                          stainless steel housing.
                                             Pumps and
                                             Energy
                                             Recovery
                                             Systems
                                                                          The type of pumps and energy recovery
                                                                          booster are selected based on unit size
                                                                          and efficiency requirements. Osmonics
                                                                          centrifugal Tonkaflo pumps and
                                                                          high-pressure boosters are featured.
                                                                          Other pump and energy recovery
                                                                          alternatives are available.
                                             Pump Motor
                                                                          High-efficiency TEFC motors are
                                                                          standard.
                                             Membrane
                                             Element
                                             Housings
                                                                          Four- and eight-inch diameter FRP
                                                                          housings rated for extended life and
                                                                          corrosion resistance.
                                             Membrane
                                             Element
                                                                          Osmonics SWRO elements are
                                                                          polyamide thin-film composite, available
                                                                          in four- and eight-inch diameters.
                                                                          Rejection 99.5% at 5,500 gpd.
                                             Skid and Frame
                                                                          Welded carbon steel, epoxy-primed with
                                                                          corrosion-resistant phenolic overcoat.
                                                                          Specially welded stainless steel skid and
                                                                          frames are also available.
                                             Low-Pressure
                                             Piping
                                                                          Schedule 80 PVC is standard; CPVC and
                                                                          stainless steel are available.
                                             High-Pressure
                                             Piping
                                                                          Schedule 40 Duplex 2205 stainless steel
                                                                          is standard; other stainless steel alloys
                                                                          are available.
                                             Power
                                             Requirements
                                                                          Three-phase and single-phase power in
                                                                          50 or 60 Hz.
                                             Electronic
                                             Controls
                                                                          Comprehensive PLC package with
                                                                          operator/machine interface. Enclosures
                                                                          are rated for IEC or NEMA standards.
                                                                          Isolatable alarms:

                                                                                 Low inlet pressure
                                                                                 High temperature
                                                                                 High permeate pressure
                                                                                 High brine pressure


                                             System
                                             Documentation
                                                                          Customized instruction manuals and
                                                                          complete sets of drawings needed to
                                                                          support installation, operation, and
                                                                          maintenance.


All Residential Sea Water Desalination Systems include the Total Dissolved Solids Monitor
to test your own product water:
TDS
